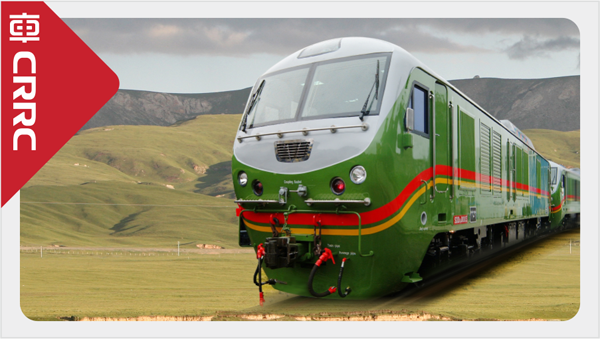

SDD1A diesel locomotive is AC-DC electric transmission locomotive specifically designed for main line passenger and freight transportation on narrow gauge railway in Africa. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a CAT 3512B diesel engine, with a service power of 1340KW and a maximum operating speed of 100km/h 91香蕉|91香蕉视频污|91香蕉视频在线观看|91香蕉下载. It is suitable for operation in high ambient temperature, heavy sand environment and poor track condition. SDD1A locomotive is AC-DC diesel locomotive specifically designed for mainline passenger and freight transportation on narow gauge railway in Africa. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a high-speed electric injection diesel engine, with service power of 1340kW and maximum operating speed of 100km/h. lt is suitable for operation in high ambient temperature, heavy sand environment and poor track condition 91香蕉|91香蕉视频污|91香蕉视频在线观看|91香蕉下载. |
Main Technical Parameters |
| Application | Main line passenger & freight transportation | Track Gauge | 1067mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 914mm |
| Axle Load | ≤13.5t | Locomotive Service Weight | ≤81t |
| Max. Service Output of Diesel Engine | 1340kW | Min. Negotiable Curve Radius | 100m |
| Max. Running Speed | 100km/h | Continuous Speed | 12km/h |
| Max. Starting Tractive Effort | 259kN | Continuous Tractive Effort | 212kN |
| Fuel Capacity | 3500L | Oil Capacity | 360kg |
| Sand Capacity | 600kg | Overall Dimensions (L×W×H) | 17400mm×2850mm×4050mm |
