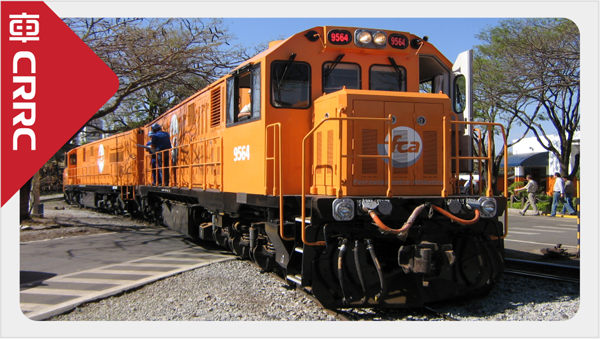

| SDD8 AC-DC electric transmission diesel locomotive is used for main line passenger and freight transportation on narrow gauge railway. The locomotive adopts single driver's cab and outside corridor structure, with a service power of 1960KW and a maximum running speed of 80km/h. The locomotive is equipped with microcomputer control system, multiple-unit device and resistance brake device |
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1000mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 914mm |
| Axle Load | 20t | Locomotive Service Weight | 120t |
| Max. Service Output of Diesel Engine | 2060kW | Min. Negotiable Curve Radius | 60m |
| Max. Running Speed | 80km/h | Continuous Speed | 18km/h |
| Max. Starting Tractive Effort | 384kN | Continuous Tractive Effort | 280kN |
| Fuel Capacity | 6000L | Oil Capacity | 400kg |
| Sand Capacity | 600kg | Overall Dimensions (L×W×H) | 18300mm×2800mm×3900mm |
