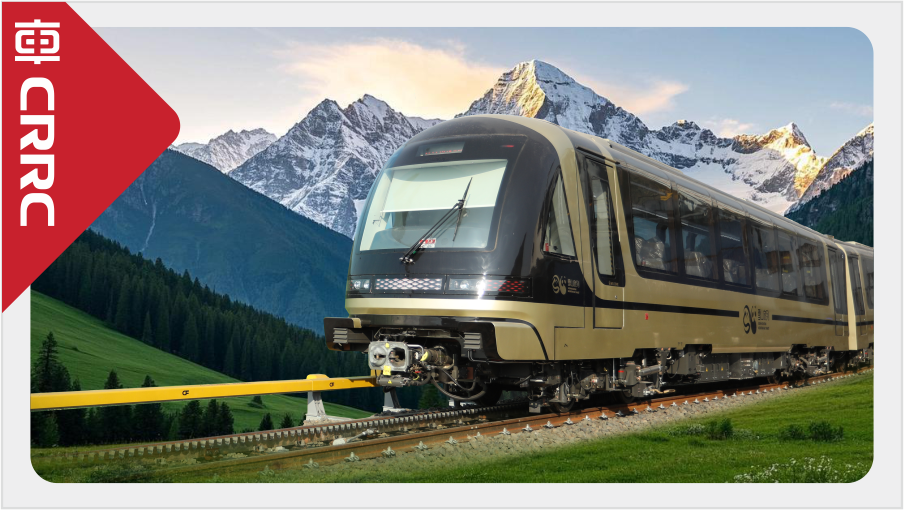

| With large gradients and strong adaptability to the terrain, the rack rail line is suitable for mountaineering railway with large slope in mountainous areas, and the railway construction cost is low. Rack rail vehicle has strong climbing ability, large transportation capacity and high safety, which is suitable for the railway passenger transport in mountain scenic areas. It can be seamlessly connected with the ordinary wheel-rail railway to realize the close combination of rail transportation and tourism. |
Main Technical Parameters |
| Configuration Mode | 4 Units | Axle Arrangement | B0-B0 |
| Main Transmission Mode | DC-AC electric transmission | Supply Voltage | DC1500V |
| Track Gauge | 1000 mm | Axle Load | 12t |
| Wheel Diameter | 840 mm | Min. Radius of Curve | Adhesive section 150m rack section 400m |
| Max. Negotiable Gradient | Adhesive section 40‰ rack section 120‰ | Max. Running Speed | Adhesive section 120 km/h rack section 40 km/h |
| Service Brake Deceleration | Adhesive section: 1.0m/s2 | Emergency Brake Deceleration | Adhesive section: 1.2m/s2 rack section 0.3m/s2 |
| Rated Passenger Capacity | 251 | Exceed Passenger Capacity | 351 |
| Train Overall Dimensions (L×W×H) | 78144mm×2500mm×3800mm | ||
